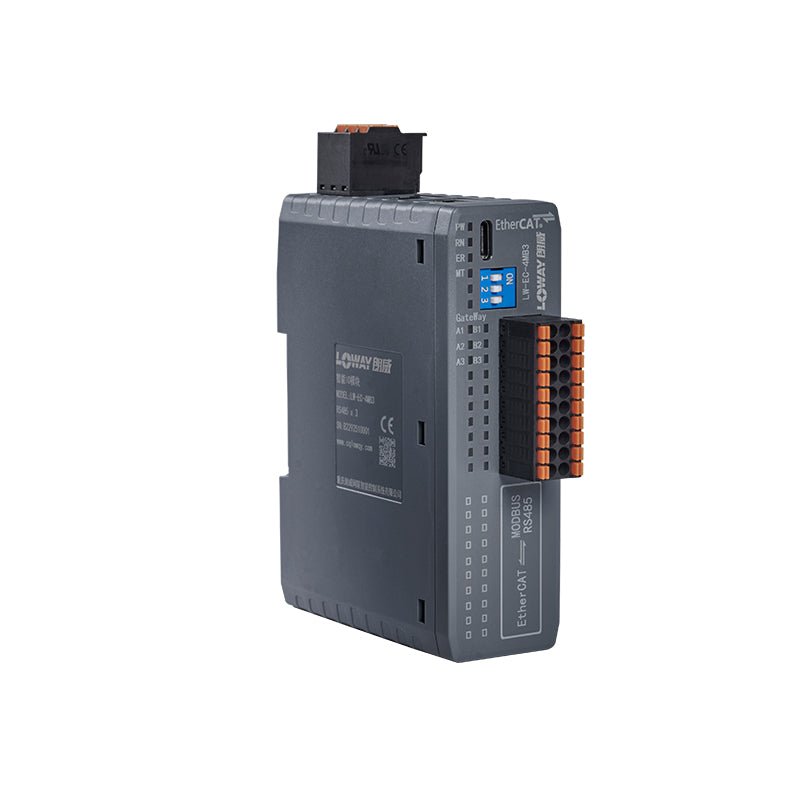

Gateway Konversi Protokol EtherCAT ke ModbusRTU

Gateway konversi protokol terisolasi EtherCAT ke RS485 multi-saluran tingkat industri, dirancang untuk sistem kontrol otomatisasi berkecepatan tinggi.

Spesifikasi Teknis

  • Protokol Bus: EtherCAT
  • Port Serial: RS485 (3/6/12 Saluran Opsional)
  • Isolasi Saluran: Isolasi Elektrik 3000V
  • Mode Komunikasi: Transmisi transparan dua arah
  • Baud Rate: 300-115200bps (Adaptif Otomatis)
  • Catu Daya: Tegangan Lebar DC 9-36V
  • Pemasangan: Pemasangan Rel DIN 35mm
  • Suhu Kerja: -40℃ ~ 85℃
  • Perlindungan: Perlindungan Anti-lonjakan, Tegangan Berlebih, Arus Berlebih
Hubungi Kami
The LW-EC series is a self-developed high-performance Modbus RTU to EtherCAT gateway with high-speed transmission and multi-independent RS485 channels. It is available in 3-channel, 6-channel and 12-channel models. The gateway seamlessly converts Modbus RTU to EtherCAT protocol, allowing Modbus RTU devices such as meters, inverters, protection relays and soft starters to connect to EtherCAT-based controllers from Beckhoff, Omron, Keyence, Delta, Inovance and Xinje. Operating as an EtherCAT slave, the gateway provides RS485 serial interfaces and integrates a Modbus RTU master function for reliable serial-to-EtherCAT data conversion.
LW_Series_EtherCAT_Protocol_All-in-One_IO_Module_User_Manual.pdf
Download
LW_ESI_V7.6_add1616BNCD--2631.xml
Download
LW-EC_Gateway_Configuration_Tool.rar
Download
LW-EC_Gateway_Wiring_Diagram.rar
Download
LW-EC-4MB3.edz
Download
LW-EC-4MB6.edz
Download
LW-EC-4MB12.edz
Download
