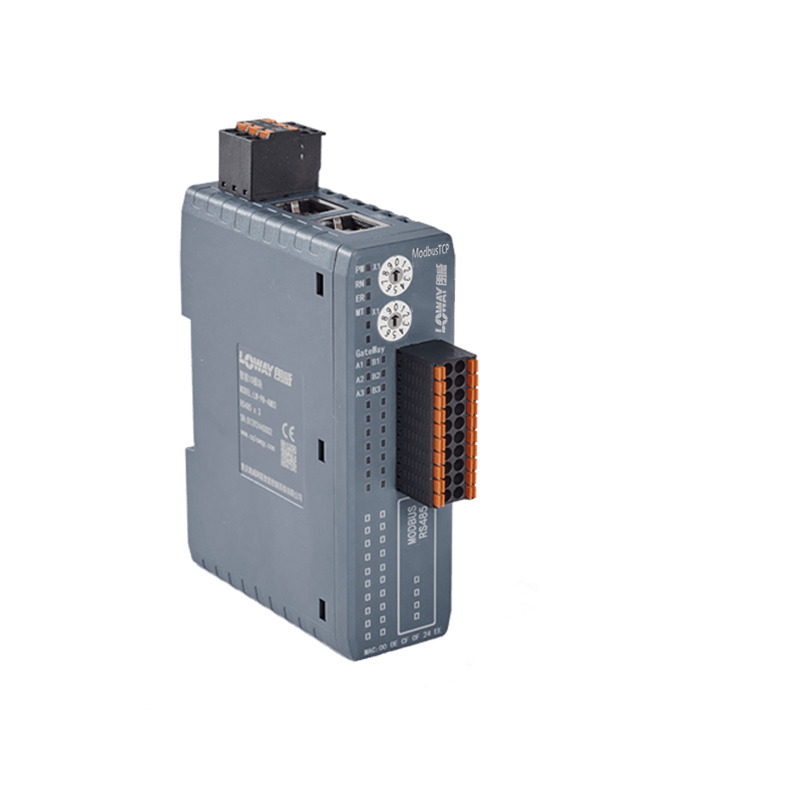

Gateway Konversi Protokol Modbus TCP ke RS485

Gateway konversi protokol terisolasi Modbus TCP tingkat industri ke RS485 multi-saluran, banyak digunakan dalam IoT industri dan pemantauan data.

Spesifikasi Teknis

  • Protokol Bus: Modbus TCP
  • Port Serial: RS485 (3/6/12 Saluran Opsional)
  • Isolasi Saluran: Isolasi Listrik 3000V
  • Mode Komunikasi: Transmisi transparan dua arah
  • Baud Rate: 300-115200bps (Adaptif Otomatis)
  • Catu Daya: Tegangan Lebar DC 9-36V
  • Pemasangan: Pemasangan Rel DIN 35mm
  • Suhu Kerja: -40℃~ 85℃
  • Perlindungan: Anti-lonjakan, Tegangan Berlebih, Perlindungan Arus Berlebih
Hubungi Kami
The LW-MT series is our self-developed high-performance gateway with high-speed transmission and multiple independent RS485 channels, converting Modbus RTU to Modbus TCP. 3-channel, 6-channel and 12-channel options are provided. It connects Modbus RTU devices such as meters, inverters, protection relays and soft starters to Modbus TCP networks including PLCs, industrial PCs, HMIs and DCS systems. The gateway acts as a Modbus TCP slave, equipped with RS485 serial ports and an integrated Modbus RTU master.
LW_Series_Modbus_TCP_Protocol_All_in_One_IO_Module_User_Manual_V1.2.pdf
Download
LW-MT_Gateway_Configuration_Tool.rar
Download
LW-MT_Gateway_Wiring_Diagram.rar
Download
LW-MT-4MB12.edz
Download
LW-MT-4MB3.edz
Download
LW-MT-4MB6.edz
Download
