分布式IO系列介绍

Remote IO Module

Advanced Industrial-grade Input/Output Solutions for Distributed Control Systems

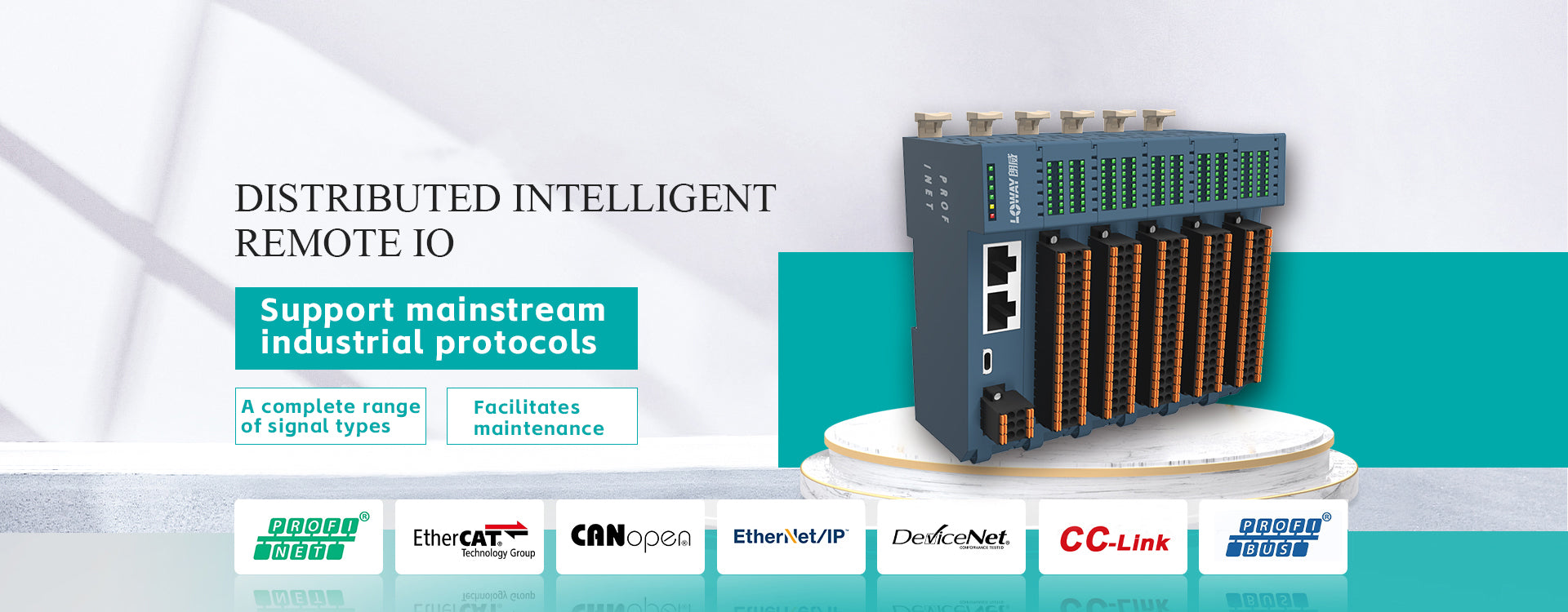

Product Overview

Distributed remote I/O is suitable for medium to large-scale scenarios with a large number of on-site points, various signal types, and relatively concentrated distribution. A single communication module can support the expansion of up to 32 I/O modules of different signal types. It supports mainstream industrial fieldbus protocols and can be used as a slave station for PLCs, DCSs, or CODESYS from brands such as Siemens, Mitsubishi, Omron, Schneider, AB, Delta, Phoenix Contact, and Keyence.

Technical Specifications

Detailed parameters for industrial integration and performance evaluation

Input Specifications

  • I/O Type Analog Signal(mA/V)
  • I/O Type Digital Signal(PNP/NPN)
  • Input Type TC (K/J/T/E/N/S/R/B/other)
  • Input Type RTD(Cu50/Pt100/other/0~1KΩ)
  • Output Type RLY(5A)

Communication

  • Protocols ProfiNET/ModbusTCP/EtherCAT
  • Ethernet Ports 2( 10/100 Mbps)
  • Optional Serial Port RS-485 (1)
  • Electrical isolation Yes
  • Data Transmission Medium CAT5 Cable

Others

  • Operating Temp -10°C to +70°C
  • Storage Temp -20°C to +80°C
  • Humidity 5-95% RH, non-condensing
  • Certification CE
  • IP Rating IP20

Key Features

Designed for reliability and performance in industrial environments


Industrial Grade Reliability

Built to withstand extreme temperatures, vibrations, and electrical noise commonly found in industrial environments.


Comprehensive IO Signals

Covers digital, analog, temperature, pulse, counting and weighing signals.


Stable & Efficient

Adopts protocol-specific chips, instead of a software protocol stack.


Dual Ethernet Ports Design

Communication module has dual ports and supports built-in switch function.


High Integration & Compact Size

Offers multiple IO modules; two typical ones: 32-point digital & 16-point analog (120×22×78mm/120×17×78mm).


Customizable

Supports customization based on customer-specific requirements.



Step 1: Identify the communication protocol you need

远程IO行业应用

Industrial Applications

Versatile solutions for various industrial sectors

Intelligent Manufacturing

Intelligent Manufacturing

Production lines in high-end manufacturing feature "long-distance, multi-station, and high flexibility" characteristics, and Remote IO meets the flexible expansion needs of the production lines.

Process Industry

Process Industry

The production scenarios of the process industry are mostly "continuous production + decentralized on-site equipment", and Remote IO is a key element in realizing distributed control.

Transportation and Logistics

Transportation and Logistics

The core demand of transportation and logistics scenarios is "centralized monitoring of widely distributed equipment", and Remote IO enables cross-regional data interaction.

Municipal & Environmental

Municipal & Environmental

Municipal facilities (water supply, drainage, gas) and environmental protection projects have equipment widely scattered across cities, and Remote IO simplifies centralized management.

Energy Industry

Energy Industry

Equipment in the energy sector is generally distributed in vast areas or special environments, and Remote IO addresses the issues of "long-distance data transmission" and "adaptation to harsh environments".

Mining and Metallurgy

Mining and Metallurgy

The on-site environment of mining and metallurgy is harsh (high temperature, dust, and strong impact), and the equipment has a wide distribution range; Remote IO is the core of "safe data collection + remote control".
