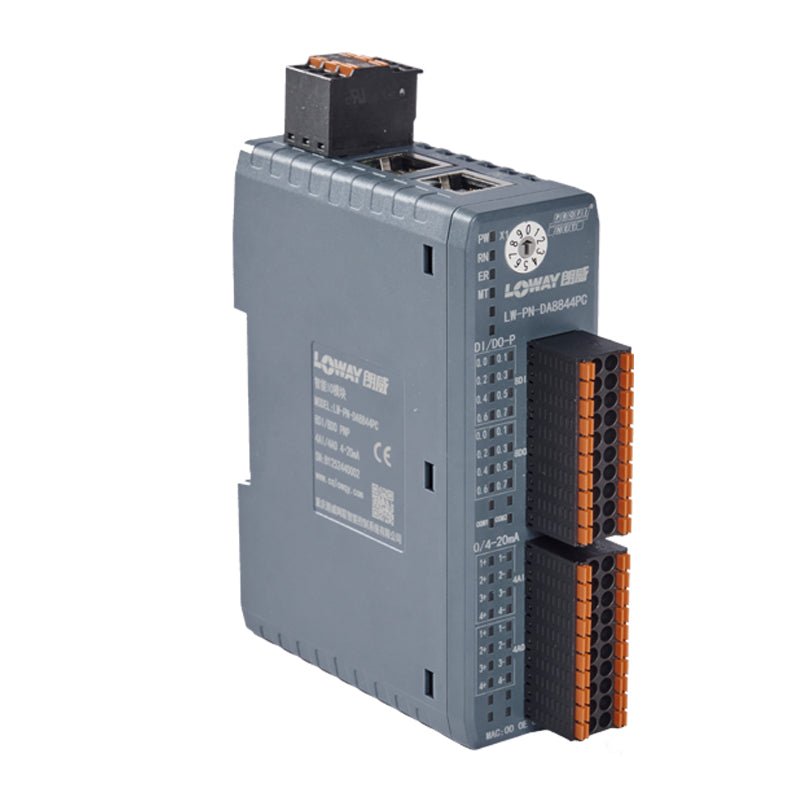

LW Series All-in-One Remote IO Modules

LW Series All-in-One Remote IO Modules are composed of a communication board and extended IO modules.

Corresponding bus modules can be selected for the communication board according to the communication interface of the control system. It supports mainstream industrial communication protocols: Modbus RTU, Modbus TCP, Profinet, EtherCAT, EtherNet/IP, CANopen, CC-Link and CC-Link IE FB.
Extended IO modules are categorized into six types: digital input modules, digital output modules, analog input modules, analog output modules, special function modules and mixed IO modules.

For applications with a small quantity of IO points, this all-in-one IO solution effectively reduces project costs, simplifies field wiring and enhances the operational stability of the overall control system.

Contact us if you have any customization requirements.
Contact Us

Specifications

Item Specification Parameter
Communication Protocol PROFINET PROFINET Slave, 2×RJ45, 100 Mbps, Electrical Isolation, Ring Redundancy Supported
EtherCAT EtherCAT Slave, 2×RJ45, 100 Mbps, Electrical Isolation
Modbus TCP Modbus TCP Server, 2×RJ45, 100 Mbps, Electrical Isolation
Modbus RTU Modbus-RTU Slave, 1×RS485, Max. I/O Data: 8192 Bytes
CANopen CANopen Slave
CC-Link CC-Link Slave
CC-Link IE FB CC-Link IE Field Basic Slave, 2×RJ45, 100 Mbps, Electrical Isolation
EtherNet/IP EtherNet/IP Slave, 2×RJ45, 100 Mbps, Electrical Isolation
Digital Input Module 16DI 16DI, PNP/NPN
32DI 32DI, PNP/NPN
64DI 64DI, PNP/NPN
Digital Output Module 5DO 5DO, Relay
10DO 10DO, Relay
16DO 16DO, PNP 0.5A / NPN 0.5A
24DO 24DO, PNP 4A for Solenoid Valve
32DO 32DO, PNP 0.5A / NPN 0.5A
64DO 64DO, PNP 0.5A / NPN 0.5A
Analog Input Module 8AI 8AI, 0/4-20mA Current, 0-10V/±10V Voltage
16AI 16AI, 0/4-20mA Current, 0-10V/±10V Voltage
Analog Output Module 8AO 8AO, 0/4-20mA Current, 0-10V/±10V Voltage
16AO 16AO, 0/4-20mA Current, 0-10V/±10V Voltage
Digital I/O Module 8DI+8DO 8DI PNP/NPN +8DO, PNP 0.5A, NPN 0.5A
16DI+16DO 16DI PNP/NPN +16DO, PNP 0.5A, NPN 0.5A
32DI+32DO 32DI PNP/NPN +32DO, PNP 0.5A, NPN 0.5A
Analog I/O Module 4AI+4AO 4AI+4AO, 0/4-20mA Current, 0-10V/±10V Voltage
8AI+8AO 8AI+8AO, 0/4-20mA Current, 0-10V/±10V Voltage
Digital & Analog I/O Module 8DI+8DO+4AI+4AO 8DI PNP/NPN+8DO PNP/NPN, 4AI+4AO 0/4-20mA, 0-10V/±10V
Temperature Module 5-ch RTD 5AI, RTD
10-ch RTD 10AI, RTD
8-ch TC 8AI, TC
16-ch TC 16AI, TC
